Monday, January 19, 2015

Split Panel Cargo Floor

Made some new closure plates for the inside of the two new front wings. These sit on the far upper inside of the arches.
 Seam welded the floor plate, and spot welded to under side.
 Floor inner rear edge spot welded to side wall.
 Inner stop plate edge welded.
 Inner front edge of wheel tub repaired and welded down to cab floor.

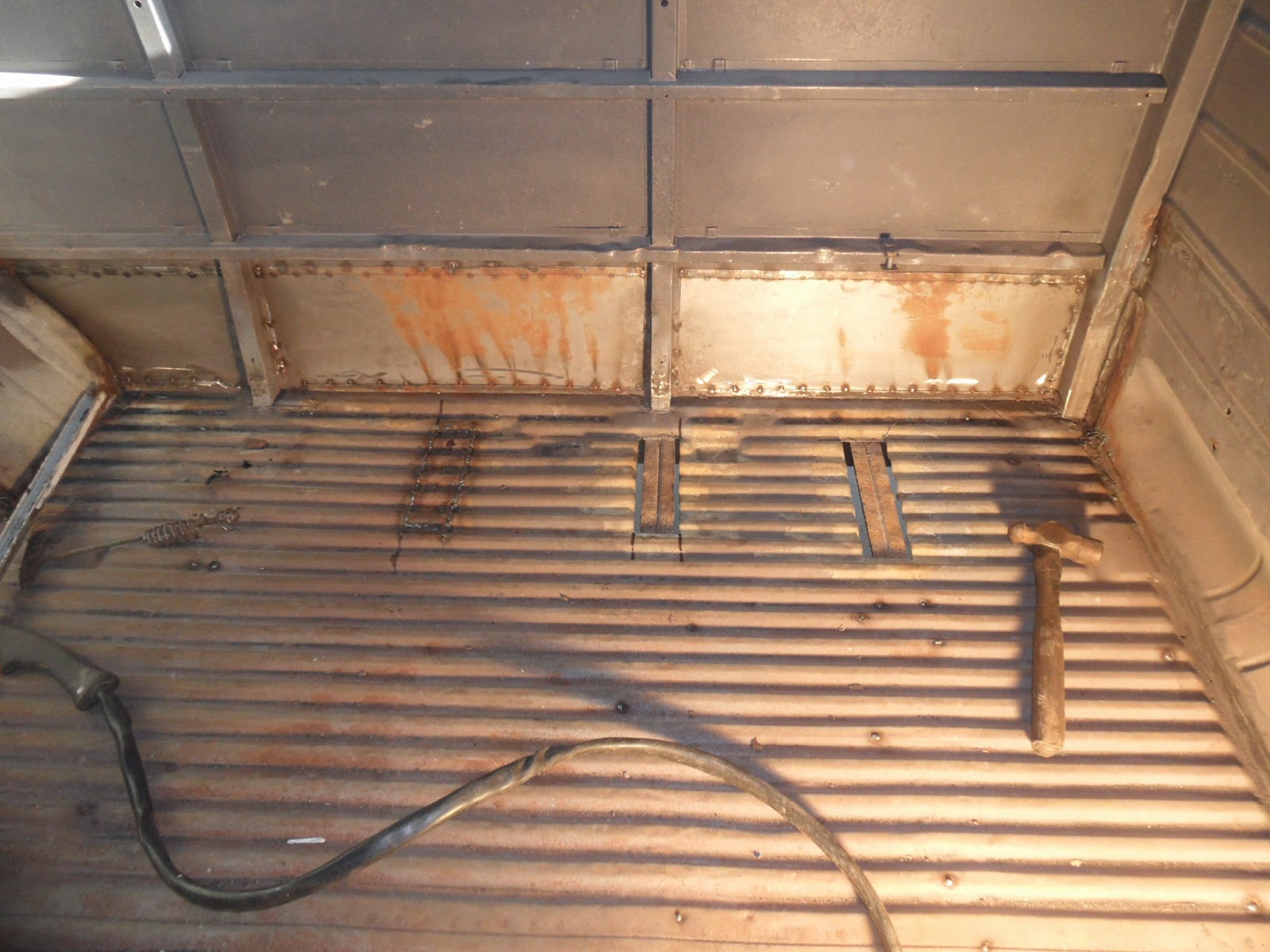

 Repairing cargo floor with good bits of cut out old floor (cargo door side)
Cut to fit then tack weld in, tap to adjust, including using a floor jack to push the floor back level, then seam weld.

 Just one more section needs doing visible on the left in the first floor picture.

A multitude of additional welds here and there as I move around, anything I have missed I go over or add. Same applies to grinding on the visible sections, ground and or sanded.
